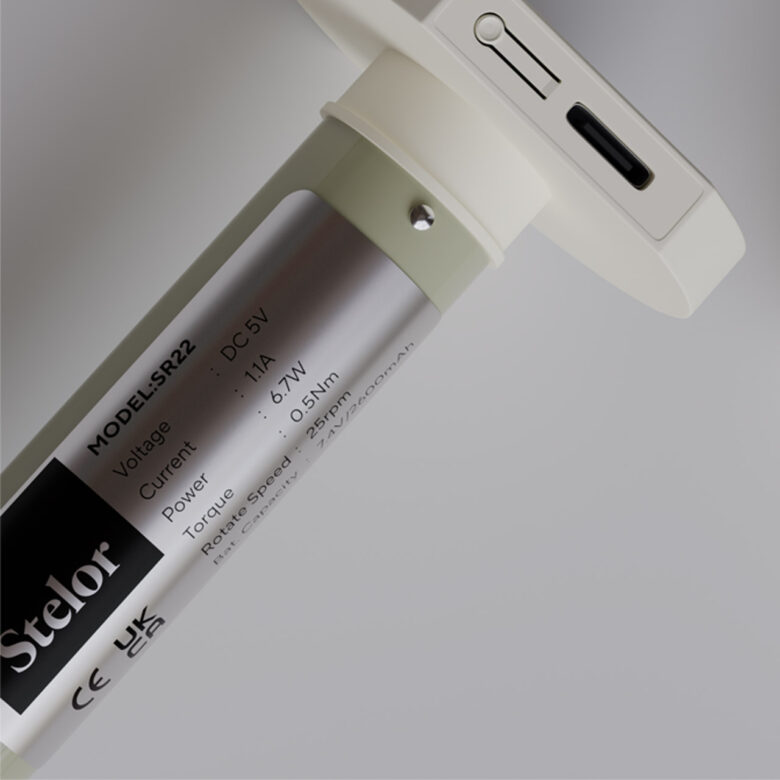

SR22 Roller Motor
Overview
This quiet and efficient motor offers smooth operation with precise control via a child-safe, ergonomic remote. Its long-lasting rechargeable battery supports USB-C and solar charging for optimal energy use. Designed for durability, it fits 32mm roller tubes and is backed by a 3-year warranty with rigorous lifetime testing.
Features
- High Performance
- Complete control at your fingertips
- Rechargeable & Energy Efficient
- Expert design & durable performance
High Performance – Low noise
Features
0.5N.m torque
Effectively manages loads up to 3kg
25 RPM ensuring smooth steady operation
Soft Start / stop
Uninterrupted living low noise 40db
Complete control at your fingertips
Features

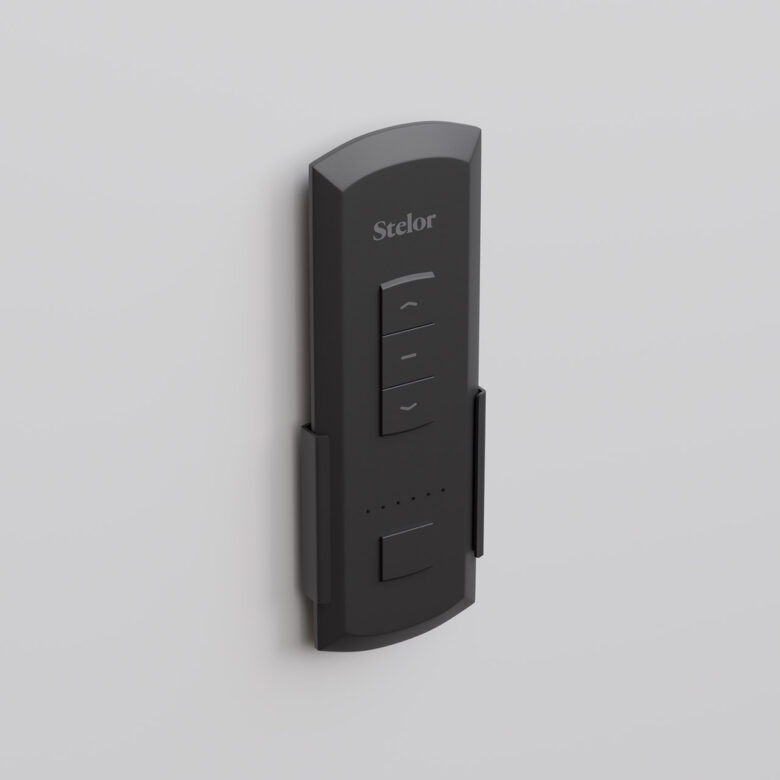

Sleek ergonomic design – Single or Six channel control
Child safe remotes by design
433.92 MHz 60m connectivity
Simply programmed to operate 6 limits - top, bottom and 4 favourite positions
Connect to the motor with multiple remotes
Rechargeable & Energy Efficient
Features
Low energy usage
Long-lasting 2600mA/h lithium-ion battery

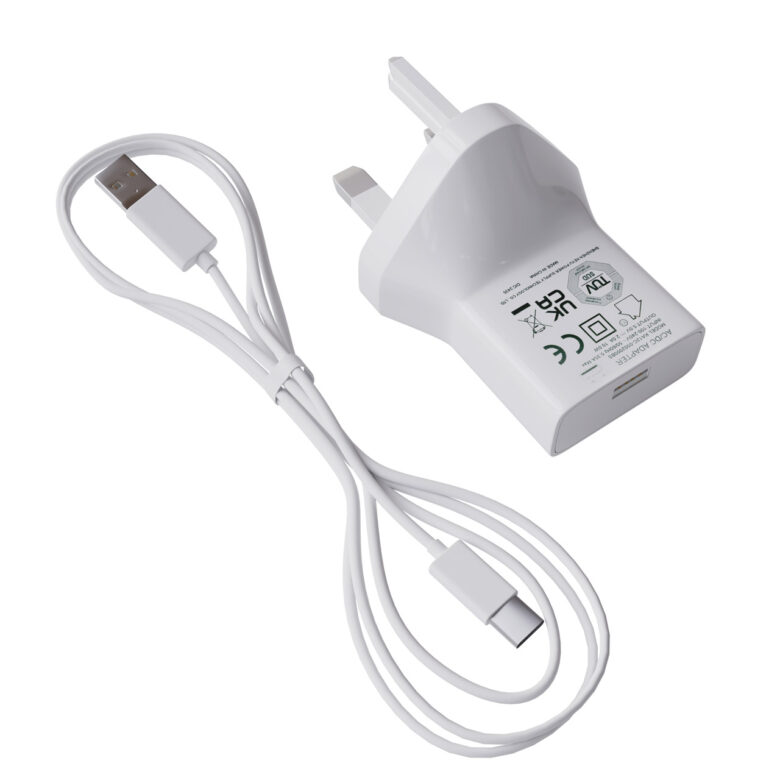

USB-C charging – Stelor charger easy to connect 3m cable
4-5 months operation from a single charge due to low power consumption
Combine with solar panel for optimal energy efficiency
Expert design & durable performance
Features
Specially design components and brackets
Compatible with 32mm roller tubes
3 years warranty*
Lifecycle testing of over 10,000 uses – equivalent to 7 years average use!
Product Specification
Max Load Capacity
3kg
Battery Capacity
2600mAh
Rated Torque
0.5N·m
Rated Power
6.7 W
| Product | SR22 Tubular Motor |
| Motor Type | DC Tubular Motor |
| Power Source | Rechargeable Built in Lithium-ion Battery |
| Max Load Capacity | 3kg |
| Charging Voltage | DC 5V |
| Charging Current | 0.8A |
| Battery Capacity | 2600mAh |
| Rated Torque | 0.5N·m |
| Rated Speed | 25rpm |
| Rated Power | 6.7 W |
| Rated Current | 1.6 A |
| Locked-Rotor Current | ≤2.0A |
| Sleeping Current | <220µA |
| Shut-down Current | <40µA |
| Operating Temp | -20°C to +55°C |
| Outer Tube Diameter | 22mm |
| Control | RF transmitter |
| Received Frequency | 433.92 MHz |
FAQ's
The SR22 will be able to support a 3kg load.
This will be dependent on the fabric selection, the lighter the fabric the larger the blind. A Stelor blind retailer will be able to recommend the right solution.
This will depend on the tube and brackets of your current roller blind; a blinds professional will be able to check.
The SR22 motor offers 4-5 months of standard operation from a full charge.
Make sure you’re using the Stelor USB-C charger for 6 hours at least every 6 months.
Potentially consider a solar panel for enhanced energy efficiency, at the solar panel will continually trickle charge the motor.
Read the Stelor Battery care tips to learn more about the battery.
Setting up a Stelor motor is simple, within minutes you will be able to connect and operate your blinds adding up to 6 limits.
Find the comprehensive instructions here.
Contact Support
Need further help? The Stelor team is here to assist you with any queries.
